Jual Macherey Nagel Indonesia.

VISOCOLOR ALPHA
-     Visual evaluation
-     Environment-friendly, without hazardous goods
-     Low-priced
-     Convenient handling, as easy as dip sticks
-     Accurate results
-     Handy packages
-     Reagent bottles with clear dosing instructions
-     With pictographic instructions
-   Colorimetry with colour comparison card
- Titration with drop counting

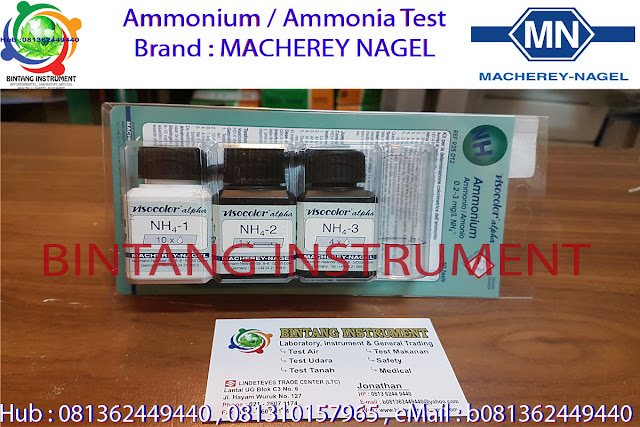

	Ammonium
	-
935 012	range : 0-0.2-0.5-1-2-3 mg/l  NH4	50
	Carbonate hardness
935 016	range : 1 drop = 1 0d	100
	Chlorine
935 019	range : 0.25-0.5-1.0-1.5-2.0 mg/I Cl‑2	150
	Total Hardness
935 042	range: 1 drop = 1 0d	100
	Residual Hardness
935 080	range: 0.00-0.04-0.08-0.15-0.30 0d	200
	Nitrate
	-
935 065	range : 2-8-15-30-50 mg/I NO3 ••	100
	Nitrite
	-
935 066	range : 0.05-0.10-0.25-0.5.1.0 mg/I NO2	200
	pH 5 – 9
935 075	range : pH 5.0-5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0	200
	Phosphate
	3-
935 079	range : 2-5-10-15-20 mg/I PO4	70
VISOCOLOR ECO
-     Environment-friendly, without toxic reagent
-     Economically priced
-     Convenient handling
-     Higher accuracy and sensitivity
-     Reagent bottles with clear dosing instructions
Colorimetry with colour comparison card
-     Visual and photometric evaluation (with PF 11/ photino)
-     With pictographic instructions
-     Compensation of turbidities and colours
-     Refill pack available
Filtration with drop counting
-     Sha,er colour change due to separated dropping reagents
	Aluminium
931 006	range : 0-0.10-0.15-0.20-0.25-0.30-0.40-0.50 mg/l Al	50
931 206	Refill pack	50
	Ammonium 3
931 008	range : 0-0.2-0.3-0.5-0.7-1-2-3 mg/I NH +	50
	4
931 208	Refill pack	50
	Ammonium 15
931 010	range : 0-0.5-1-2-3-5-7-10-15 mg/I NH +	50
	4
931 210	Refill pack	50
	Calcium
931 012	range : 1 drop = 5 mg/I Ca	100
	Carbonate hardness
931 014	range : 1-10 1 0d  and higher	100
	Chlorine 2
931 015	range : <0.1-0.1-0.2-0.3-0.4-0.6-0.9-1.2-2.0 mg/I Cl2	150
931 215	Refill pack	150
	free Chlorine 2
931 016	range : 0.1-0.1-0.2-0.3-0.4-0.6-0.9-1.2-2.0 mg/l  Cl2	150
931 216	Refill pack	150
	Chloride
931 018	range : 0-1-2-4-7-12-20-40-60 mg/I Cl-•	90
931 218	Refill pack	90
	Chromium (VI)
931 020	range :0.00-0.02-0.05-0.10-0.15-0.20-030-0.40	140
	0.50mg/lCr (IV)
931 220	Refill pack	140
	Chlorine Dioxide
931 021	range : 0.2-0.4-0.6-0.8-1.1-1.7-2.3-3.8 mg/L ClO2	150
931 221	Refill pack	140
	Cyanide
931 022	range : 0-0.01-0.02-0.03-0.05-0.07-0.10-0.15-0.20 mg/l CN-	100
931 222	Refill pack	100
	Cyanuric acid
931 023	range : 10-15-20-30-40-60-80-100 mg/I Cya	100
931 223	Refill pack	100
	DEHA (diethylhydroxylamine)
931 024	range : 0-0.01-0.03-0.05-0.10-0.15-0.20-0.25-0.30mg/I DEHA	125
931 224	Refill pack	125
	Iron 1
931 025	range : 0-0.04-0.07-0.10-0.15-0.20-0.30-0.50-	200
	1.0 mg/I Fe
931 225	Refill pack	200
	Iron
931 026	range : 0-0.04-0.07-0.10-0.15-0.20-0.30-0.50-	100
	1.0 mg/I Fe
931 226	Refill pack	100
	Total Hardness
931 029	range : 1 – 10 0d and higher	110
	Hydrazine
931 030	range : 0-0.05-0.10-0.15-0.20-0.25-0.30-	130
	0.40 mg/l N2H4
931 230	Refill pack	130
	Potassium
931 032	range : 2-3-4-6-8-10-15 mg/l K	60
931 232	Refill pack	60
	Silica
931 033	range : 0-0.2-0.4-0.6-1.0-1.5-2.0-2.5-3.0 mg/l SiO2	100
931 233	Refill pack	100
	Copper
931 037	range : 0-0.1-0.2-0.3-0.5-0.7-1.0-1.5 mg/I Cu	100
931 237	Refill pack	100
	Manganese
931 038	range : 0-0.1-0.2-0.3-0.5-0.7-0.9-1.2-1.5 mg/l Mn	70
931 238	Refill pack	70
	Nickel
931 040	range : 0-0.1-0.2-0.3-0.5-0.7-0.9-1.2-1.5 mg/I Ni2+	150
931 240	Refill pack	150
	Nitrate
931 041	range : 0-1-3-5-10-20-30-50-70-90-120 mg/INO3-	110
931 241	Refill pack	110
	Nitrite
931 044	range : 0-0.02-0.03-0.05-0.07-0.1-0.2-0.3-0.5 mg/I NO•2-	120
931 244	Refill pack	120
	pH 4.0 - 9.0
931 066	range : 4.0-5.0-6.0-6.5-7.0-7.5-8.0-8.5-9.0 pH	450
931 266	Refill pack	450
	Phosphate
931 084	range : 0-0.2-0.3-0.5-0.7-1-2-3-5  mg/l  PO4-P	80
931 284	Refill pack	80
	Oxygen
931 088	range : 0-1-2-4-8-8-10 mg/I	50
931 288	Refill pack	50
	Swimming Pool (chlorine + ph)
931 090	range : 0.1 – 2.0 mg/l Cl2 range : 6.9 – 8.2 pH	150
		150
931 290	Refill pack	150
	Sulphate
931 092	range : 25-30-35-40-50-60-70-80-100-120-150-200 mg/L SO42-	150
931 292	Refill pack	150
	Sulphide
931 094	range : 0-0.1-0.2-0.3-0.4-0.5-0.6-0.7-0.8 mg/l S2-	90
931 294	Refill pack	90
	Sulphite
931 095	range : 1 drop = 1 mg/I SO32-	60
	Zinc
931 098	Range : 0-0.5-1-2-3 mg/l Zn	120
931 298	Refill pack	120
VISOCOLOR HE
Highly sensitive colorimetric test kit. In comparison with conventional VISOCOLOR kits.
Their sensitivity in enchanced by increasing the length of the test tube and the use of highly sensitive reagents.
This technique allows a 10-fold to 100- fold increase of sensitivity.
-     Visual evaluation
-     Economy priced
-     Convenient handling
-     Reagent bottles with clear dosing instructions
-     Refill pack available
COLOMETRIC TEST KIT
High sensitivity colorimetry with comparator block and colour comparison table.
-     Environment-friendly, without toxic reagents
-     Highest accuracy due to extremely narrow gradation
-     Compensation of turbidities and colours
TITRATION TEST KIT
High sensitive volumetric analysis with gradated syringe
	Ammonium
920 006	range : 0.02 – 0.50 mg/l NH+	110
920 106	Refill pack	110
	Chlorine
920 015	range : 0.02 – 0.60 mg/l Cl2	2x160
920 115	Refill pack	2x160
	Copper
920 050	range : 0.04 – 0.50 mg/l Cu2+	150
920 150	Refill pack	150
	Cyanide
920 028	range : 0.002 – 0.04 mg/l CN-	55
920 128	Refill pack	55
	Iron
920 040	range : 0.01 – 0.20 mg/l Fe	300
920 140	Refill pack	300
	Manganese
920 055	range : 0.03 – 0.50 mg/l Mn	100
920 155	Refill pack	100
	Nitrite
920 063	range : 0.005 – 0.10 mg/l NO -	150
	2
920 163	Refill pack	150
	PH
920 074	range : 4.0 – 10.0 pH	500
920 174	Refill pack	500
	Phosphate
920 082	Range : 0.05 – 1.0 mg/l P	300
920 182	Refill pack	300
	Phosphate DEV
920 080	Range : 0.01 – 0.25 mg/l P	100
920 180	Refill pack	100
	Silica / Silicon
920 087	Range : 0.01 – 0.30 mg/l SiO2	120
920 187	Refill pack	120
VISOCOLOR COMPARATOR
Packed in a sturdy plastic box, which contains a comparator for colour comparison and all required reagents.
Colorimetry with comparator cell
-     Visual and photometric evaluation (with PF-11)
-     Convenient handling
-     Reagent bottles with clear dosing instructions
-     Comparison of turbidities and colours
-     Refill pack available
	Acidity AC7 (base capacity)
915 006	range : 0,2 – 7 mmol/l	200
915 206	Refill pack	200
	Alkalinity AL7 (total)
915 007	range : 0,2 – 7 mmol/l	200
915 207	Refill pack	200
	Calcium CA 20
915 010	range : 0.5 – 20 0d / 0.1 – 3.6 mmol/l	200
915 210	Refill pack	200
	Carbonate hardness C20
915 003	range : 0.5 – 20 0d / 0.2 – 7 mmol/l	200
915 203	Refill pack	200
	Chloride CL 500
915 004	range : 5 – 500 mg/l Cl-1	300
	Hardness H 20 F (total)
915 005	range : 0.5 – 20 0d / 0.1 – 3.6 mmol/l	200
915 205	Refill pack	200
	Hardness H2 (residual)
915 002	range : 0.05 – 2 0d / 0.01 – 0.36 mmol/l	200
915 202	Refill pack	200
	Oxygen SA 10
915 009	Range : 0.2 – 10 mg/l O2	100
915 209	Refill pack	100
	Sulphite SU 100
915 008	range : 2 – 100 mg/l SO 2-	100
	3
915 208	Refill pack	100
QUANTOFIX test sticks for semi-quantitative determinations
QUANTOFIX test sticks meet the most important requirements for a modern quick-test
- rapid            : dip and read
- convenient   : the analysis can be carried out without any further equipment , only a single test stick of  QUANTOFIX is needed
- specific         : QUANTOFIX test sticks are highly specific
possible interferences are eliminated by precipitation of masking
- stable           : shelf life 2½ years after production
(below +30 oC)
	Active Oxygen
913 49	Range : 0-4-8-15-25 mg/l KMPS	100
	Aluminium
913 07	Range : 0-5-20-50-200-500 mg/l Al	100
	Ammonium
913 15	Range : 0-10-25-50-100-200-400 mg/l NH4+	100
	Arsenic 10
913 34	range : 0-0.01-0.025-0.05-0.1-0.5 mg/l As3+/5+	100
	Arsenic 50
913 32	range : 0-0.05-0.1-0.5-1.0-1.7-3.0 mg/l As3+/5+	100
	Arsenic Sensitive
913 45	range : 0-0.005-0.01-0.025-0,05-0,1-0,25-0,5 mg/l As3+/5+	100
	Ascorbic Acid
913 14	range : 0-50-100-200-300-500-700-1000-2000 mg/l Vit.C	100
	Calcium
913 24	range : 0-10-25-50-100 mg/l Ca2+	60
	Carbonate Harness
913 23	range : 0-3-6-10-15-20 0d	100
	Chloride
913 21	range : 0-500-1000-1500-2000-³3000 mg/l Cl-	100
	Chlorine
913 17	range : 0-1-3-10-30-100 mg/l Cl2	100
	Chlorine Sensitive
913 39	Range :  0-0,1-0,5-1-3-10 mg/l Cl2	100
	Chromate
913 01	Range : 0-3-10-30-100 mg/l CrO 2-	100
	4
	Cobalt
913 03	range : 0-10-25-50-100-250-500-1000 mg/l Co2+	100
913 04	range : 0-10-30-100-300 mg/l Cu+/2+	100
	Cyanide
913 18	range : 0-1-3-10-30 mg/l CN-	100
	EDTA
913 35	range : 0-100-200-300-400 mg/l EDTA	100
	Formaldehyde
913 28	range : 0-10-20-40-60-100-200 mg/l HCHO	100
	Glucosa
913 48	range : 0-50-100-250-500-1000-2000 mg/l glucose	100
	Glutaraldehyde
913 43	range : 0-0,5-1-1,5-2-2,5% glutaradehyde	100
	Total Iron 100
913 44	range : 0-2-5-10-25-50-100 mg/l Fe	100
	Total Iron 1000
913 30	range : 0-5-20-50-100-250-500-1000 mg/l Fe	100
	LubriCheck
913 36	range : 0-15-50-75-130-200 mg/l KOH	100
	Molybdenum
913 25	range : 0-5-20-50-100-250 mg/l Mo6+	100
	Nickel
913 05	range : 0-10-25-50-100-250-500-1000 mg/l Ni2+	100
	Nitrate / Nitrite
	-
913 13	range : 0-10-25-50-100-250-500 mg/l NO3	100
	range : 0-1-5-10-20-40-80 mg/l NO -
	2
	Nitrite
913 11	range : 0-1-5-10-20-40-80 mg/l NO -	100
	2
	Nitrite 3000
913 22	range : 0-0.1-0.3-0.6-1-2-3 g/l NO -	100
	2
	Nitrite / pH
913 38	range : 0-1-5-10-20-40-80 mg/l NO -	100
	2
	range : 6,0-6,4-6,7-7,0-7,3-7,6-7,9-8,2-8,4-8,6-8,8-
	9,0-9,3-9,6
	Paracetic Acid 50
913 40	range : 0-5-10-20-30-50 mg/l peracetic acid	100
	Paracetic Acid 500
913 41	range : 0-50-100-200-300-400-500 mg/l peracetic acid	100
	Paracetic Acid 200
913 42	range : 0-500-1000-1500-2000 mg/l perecetic	100
	Nitrite 3000
913 19	range : 0-0.1-0.3-0.6-1-2-3 g/l NO -	100
	2
	Peroxide 1000
913 33	range : 0-50-150-300-500-800-1000 mg/l H•2O2	100
	Peroxide 100
913 12	range : 0-1-3-10-30-100 mg/l H•2O2	100
	Peroxide 25
913 19	range : 0-0.5-2-5-10-25 mg/l H•2O2	100
	Phospate
913 20	range : 0-3-10-25-50-100 mg/l PO4	100
	Potassium
913 16	range : 0-200-400-700-1000-1500 mg/l K	100
	QUAT
913 37	range : 0-10-25-50-100-250-500-1000 mg/l	100
	SILVER
913 50	range : 0-1-2-3-5-7-10 g/l Ag	100
	Sulfate
913 29	range : <200->400->800->1200->1600 mg/l SO4	100
	Sulfite
913 06	range : 0-10-25-50-100-250-500-1000 mg/l SO3	100
	Tin
913 09	range : 0-10-25-50100-250-500 mg/l Sn2+	100
	Zinc
913 10	range : 0-2-5-10-25-50-100 mg/l Zn	100
	Aquarium Owners
	range : 0-5-10-15-20-25 0d total hardness range : 0-3-6-10-15-20 0d carbonate hardness range : 6.4-6.8-4.2-7.6-8.0-8.4 pH
913 26		100
TEST PAPERS for qualitative determinations
Test papers allow the qualitative detection of ions and
chemical substances.
They provide the information, whether a given component is present above the defined limit of detection
Some test papers can also be used for the non-destructive
testing of materials
906 12	Phosphatesmo MI
	Determination of : Alkaline phosphatase in milk	50 sticks
907 21	Aluminium test paper
	Determination of : Aluminium ions (Al3+)	100 strips
907 22	Ammonium test paper
	+	200 strips
	Determination of : Ammonia, ammonium ions (NH3, NH4  )
907 23	Antimony test paper
	Determination of : Antimony ions(Sb3+)	200 strips
907 62	Arsenic test paper = mercury bromide paper
	Determination of : Arsenic, arsine (As, AsH3)	200 strips
907 33	Bismuth test paper
	Determination of : Bismuth ions (Bi3+)	200 strips
906 05	Peroxtesmo KM
	Determination of : Blood traces (peroxidase)	25 sheets
907 47	Tumeric paper
	3-	200 strips
	Determination of : Boric Acid , borates ( H3 BO3, BO3   )
906 03	Chlortesmo
	Determination of : Chlorine, free halogen	200strips
907 24	Chromium test paper
	+2-	200 strips
	Determination of : Chromium, chromate (Cr(VI), CrO4     )
907 28	Cobalt test paper
	Determination of : Cobalt ions (Co2+)	100 strips
906 01	Cuprotesmo
	Determination of : Copper, copper ions (Cu, Cu+, Cu2+)	40 sheets
907 29	Copper test paper
	Determination of : Copper (II) ions (Cu2+)	200 strips
906 04	Cyantesmo	Reel 5 m
	Determination of : Cyanides, hydrocyanic acid (CN-, HCN)	Length
907 50	Fluoride test paper
	Determination of : Fluorides, hydrogen fluoride (F-, H F )	200 strips
	2  2
906 03	Chlortesmo
	Determination of : Halogens, especially free chlorine	200 strips
906 04	Cyantesmo	Reel 5 m
	Determination of : Hydrocyanic acid, cyanides (HCN, CN-)	Length
907 44	Lead Acetate paper	Reel 5 m
	Determination of : Hydrogen sulphide (H2S), sulphide ions	Length
	(S2)
907 45	Lead acetate paper Refill pack (3 reels)	Pack
907 46	Lead acetate paper  booklet with 100 strips 10x75 mm	Pack
907 25	Dipyridyl paper
	Determination of : Iron (II) ions (Fe2)	200 strips
907 26	Iron test paper
	Determination of : Iron ions (Fe2+, Fe3+)	100 strips
906 27	Peroxtesmo MI
	Determination of : Lactoperoxidase in milk	100 sheets
906 02	Plumbtesmo
	Determination of : Lead, lead ions (Pb, Pb2+)	40 sheets
907 48	Udder test paper
	Determination of : Mastitis	20 sheet
907 30	Nickel test paper
	Determination of : Nickel (II) ions (Ni2+)	200 strips
906 11	Nitratesmo	Reel 5 m
	-           -	length
	Determination of : Nitrate and nitrite (NO3 , NO2 )
907 54	Potassium Iodide starch paper	Reel 5 m
	-	Length
	Determination of : Nitrite ions (NO2 )
907 55	Potassium iodide starch paper  refill pack with 3 reels	Pack
907 60	Oil test paper
	Determination of : Oil in water and soil	100 strips
907 42	AUATEC test sticks
	Determination of : oil, thickness of layer in oil separators	100 sticks
906 06	Peroxtesmo KQ
	Determination of : Peroxidase in foodstuffs	100 strips
906 27	Peroxtesmo MI
	Determination of : Peroxidase in milk	100 sheets
907 27	Potassium test paper
	Determination of : Potassium ions (K+)	200 strips
907 65	INDIPRO
	Determination of : Protein residues	60 sticks
907 53	Potassium Ioadate starch paper	Reel 5 m
	Determination of : Reducing agents, SO2, sulphite ions	Length
907 63	Sulphite test paper
	Determination of : Sulphur dioxide (SO2), sulphite ions	100 strips
907 32	Silver test paper
	Determination of : Silver ions(Ag+)	200 strips
906 07	Phosphatesmo KM
	Determination of : Sperm, acid phosphatase	25 sheets
907 51	Indanthrene yellow paper
	Determination of : Vat dyes, and-point of conversion	200 strips
907 42	AQUATEC test sticks
	Determination of : Water on the bottom of fuel thank	100 stick
906 09	Watesmo	Reel 5 m
	Determination of : Water in org. solvents	Length
906 10	Wator
	Determination of : Water distribution in buffer	50 sheets
907 21	Zirconium test paper
	Determination of : Zirconium ions (Zn4+)	100 strips
TEST PAPER for semi-quantitative determinations
	Ag-Fix (test stick) Determination of  :silver and pH Range : 0-0.5-1-2-3-5-7-10 g/l Ag+ Range : 4-5-6-7-8 pH
907 41		100
	AQUADUR
912 01	Determination of : water hardness
	Range : <3, >5, >10, > 15, >20, >25, 0d
		100
	AQUADUR
912 20	Determination of : water hardness
	Range : <3, >4, >7, >14, >21  0d
		100
	Chlorine Test
907 09	Determination of : chlorine	Reel 5 m length
	Range : 10 – 50 – 100 – 200 mg/l Cl2
	Fluoride test	30 test disks + reagent
907 34	Determination of : fluoride ions
	Range : 0-2-5-10-20-50-100 mg/l F-
	Ozone test sticks
907 36	Determination of : Ozone content in water	12
	Range : <90, 90-150, 150-210, >210 mg/m3 O
	3
	Saltesmo
906 08	Determination of : Halide ions	30
	Range : 0-0.25-0.5-1-2-3-4-5 g/l NaCl
	Swimming pool
	Determination of : free chlorine, alkalinty and pH Range :  0-05-1-3-5-10 mg/l (ppm) Cl2
	0-80-120-180-240 mg/l (ppm) Ca Co3
907 52	6.4-6.8-7.2-7.6-8.4 pH	50
UNIVERSAL and SPECIAL INDICATOR PAPERS
These products are produced by total impregnation of the paper with a pH indicator or a mixture of several indicator dyes.
This indicator paper is left in the test tube and its colour,
viewed through the glass, is compared with the colour scale after about 1 minute.
902 01	pH 1 – 11	Reel
	range  : 1-2-3-4-5-6-7-8-9-10-11
902 02	Refill pack  (pack of 3 reel)	Reel
902 03	pH 1 – 11	Booklet
	range  : 1-2-3-4-5-6-7-8-9-10-11
902 04	pH 1 – 14	Reel
	range  : 1-2-3-5-6-7-8-9-10-12-14
902 24	Refill pack  (pack of 3 reel)	Reel
902 05	pH 0.5 – 5.5	Reel
	range  : 0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5
902 25	Refill pack  (pack of 3 reel)	Reel
902 06	pH 3.8 – 5.8	Reel
	range  : <3.8-3.8-4.1-4.3-4.5-4.7-4.9-5.2-5.5-5.8->5.8
902 26	Refill pack  (pack of 3 reel)	Reel
902 07	pH 4.0 – 7.0	Reel
	range : 4.0-4.3-4.6-4.9-5.2-5.5-5.8-6.1-6.4-6.7-7.0
902 27	Refill pack  (pack of 3 reel)	Reel
902 08	pH 5.4 – 7.0	Reel
	range : <5.4-5.4-5.7-6.0-5.2-6.4-6.7-7.0-.7.0
902 28	Refill pack  (pack of 3 reel)	Reel
902 08	pH 5.4 – 7.0	Reel
	range : <5.4-5.4-5.7-6.0-5.2-6.4-6.7-7.0-.7.0
902 28	Refill pack  (pack of 3 reel)	Reel
902 09	pH 5.5 – 9.0	Reel
	Range : 5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0
902 29	Refill pack  (pack of 3 reel)	Reel
902 10	pH 6.4 – 8.0	Reel
	Range : <6.4-6.4-6.6-6.8-7.0-7.2-7.4-7.6-7.8-8.0->8.0
902 30	Refill pack  (pack of 3 reel)	Reel
902 11	pH 7.2 – 9.7	Reel
	range : <7.2-7.2-7.5-7.8-8.1-8.4-8.7-9.0-9.3-9.7->9.7
902 31	Refill pack  (pack of 3 reel)	Reel
902 12	pH 8.0 – 10.0	Reel
	Range : 8.0-8.2-8.4-8.7-9.0-9.2-9.6-10.0
902 32	Refill pack  (pack of 3 reel)	Reel
902 13	pH 9.0 – 13.0	Reel
	Range : 9.0-9.5-10.0-10.5-11.0-11.5-12.0-12.5-13.0
902 33	Refill pack  (pack of 3 reel)	Reel
902 14	pH 12.0 – 14.0	Reel
	Range : 12.0-12.5-13.0-13.5-14.0
902 34	Refill pack  (pack of 3 reel)	Reel
902 19	PH-Set U – 10
	10 differenent reel of pH indicator paper, consist of :	Pack
	-      2 reels of universal indicator paper
	-      8 reels of different special indicator papers
902 18	TRI – BOX
	Plastic dispenser with 3 reels of special indicator paper each	Pack
	5 m long and 7 mm wide, consist of :
	-      1 reel pH 0.5 – 5.5
	-      1 reel pH 5.5 - 9.0
	-      1 reel pH 9.0 - 13.0
	-      3 colour scales
Reel : plastic dispenser with colour scale and 1 reel 5 m long and 7 mm wide, packed in individual cardboard box
Refill pack   : box with 3 reels 5 m long 7 mm wide, each reel separately sealed in polyethylene
Booklet : 100 strips 10 x 70 mm with colour scale
DUOTEST double-zone indicator paper
- Duotest papers are indicator papers with greater accuracy and increased ease of reading. Two complementary indicator zones on one strip
- separated by a white center band- guarantee clear colour differentiation and a more accurate estimate of intermediate values.
- The white center band is hydrophobic and prevents that colours
of the two indicator zones run into one other , thus increasing accuracy.
- In addition the white band forms a good contrast to coloured test zones and furthermore adds mechanical strength to the wet strip, because
it repels water
903 01	pH 1 - 12	Reel
	range  : 1-2-3-4-5-6-7-8-9-10-11-12
903 11	Refill pack  (pack of 3 reel)	Reel
903 02	pH 1.0 – 4.3	Reel
	range  : 1.0-1.3-1.6-1.9-2.2-2.5-2.8-3.1-3.4-3.7-4.0-4.3
903 12	Refill pack  (pack of 3 reel)	Reel
902 03	pH 3.5 – 6.8	Reel
	range : 3.5-3.8-4.1-4.4-4.7-5.0-5.3-5.6-5.9-6.2-6.5-6.8
903 13	Refill pack  (pack of 3 reel)	Reel
902 04	pH 5.0 – 8.0	Reel
	range : 5.0-5.3-5.6-5.9-6.2-6.5-6.8-7.1-7.4-7.7-8.0
903 14	Refill pack  (pack of 3 reel)	Reel
902 05	pH 7.0 –10.0	Reel
	range : 7.0-7.3-7.6-7.9-8.2-7.5-8.85-9.1-9.4-9.7-10.0
903 15	Refill pack  (pack of 3 reel)	Reel
902 06	pH 9.5 – 14.0	Reel
	range : 9.5-10.0-10.5-11.0-11.5-12.0-12.5-13.0-13.5-14
903 16	Refill pack  (pack of 3 reel)	Reel
Collection of DUOTEST Indicator paper
PH-Set D10
903 19       10 reel of DUOTEST, consist of :                                                                  2.162.000
-      2 reel PH 1 - 12
-      2 reel pH 3.5 – 6.8
-      2 reel pH 5.0 – 8.0
-      2 reel pH 7.0 – 10.0
-      1 reel pH 1.0 – 4.3
-      1 reel pH 9.5 – 14.0
TRITEST Triple-zone indicator paper
TRITEST paper is an indicator combining highes accuracy with greatest ease of reading. Three complementary indicator zones on a single strip guarantee clear colour differentiation and the possibility to estimate
in between values. The gradation is 1.0 pH unit. TRITEST is available
for the range pH 1-11
	TRITEST in reel form (without hydrophobic zone)
	Paper strip of 10 mm width to which three adjoining indicator zones (1 main indicator and 2 auxiliary indicators) have been applied
	TRITEST pH 1 –11
	Range : 1-2-3-4-5-6-7-8-9-10-11
905 01		Reel
905 02	Refill pack  (pack of 3 reel)	Reel
	TRITEST L in reel form (with 2 hydrophobic zone)
	Paper strip of 6 m length and 14 mm width to which three indicator zones (1 main indicator and 2 auxiliary indicators) have been applied. The indicator zones are separated by hydrophobic barriers. This guarantees a sha, separation of the indicator zones which is of particular advantage in pH determinations in highly alkaline range
	TRITEST L  pH 1 –11
	Range : 1-2-3-4-5-6-7-8-9-10-11
905 10		Reel
905 11	Refill pack  (pack of 3 reel)	Reel
Reel : plastic dispenser with colour scale and 1 reel, packed in individual cardboard box
Reel size  : DUOTEST and TRITEST: 5 m long and 10 mm wide. TRITEST L : 6 m long and 14 mm wide
Refill pack   : box with 3 reels, each reel separately sealed in polyethylene
PEHANON indicator papers
For pH measurement in coloured solutions
PEHANON is a series of ph indicator papers where the indicator and colour scale are combined on a single strip. They permit a fast ,convenient and and accurate determination of the pH value since they eliminate
the necessity to compare the colour field against a separate scale. PH values are imprinted on the strips. This presentation also permits the pH measurement of coloured solutions and suspensions
since the colour of the test solution acts on the colour scale
in the same manner as on the indicator field, resulting in a comparison of mixed colours. The individual colour zones are separated by hydrophobic barrier.
PEHANON papers guarantee highest accuracy even when testing coloured solution! Again-as with universal and special indicator papers-best results are obtained for
buffered solutions and suspensions
	pH 1-12
904 01	range : 1-2-3-4-5-6-7-8-9-10-11-12	200
	pH 0 – 1.8
904 11	range : 0-0.3-0.6-0.8-1.0-1.2-1.5-1.8	200
	pH 1.0 – 2.8
904 12	range : 1.0-1.3-1.6-1.8-2.0-2.2-2.5-2.8	200
	pH 1.8 – 3.8
904 13	range : 1.8-2.1-2.4-2.7-3.0-3.2-3.5-3.8	200
	pH 2.8 – 4.6
904 14	range : 2.8-3.1-3.4-3.6-3.8-4.0-4.3-4.6	200
	pH 3.8 – 5.5
904 15	range : 3.8-4.0-4.2-4.4-4.6-4.9-5.2-5.5	200
	pH 4.0 – 9.0
904 24	range : 4.0-4.5-5.0-5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0	200
	pH 5.2 – 6.8
904 16	range : 5.2-5.5-5.7-5.9-6.1-6.3-6.5-6.8	200
	pH 6.0 – 8.1
904 17	range : 6.0-6.3-6.6-6.9-7.2-7.5-7.8-8.1	200
	pH 7.2 – 8.8
904 19	range : 7.2-7.4-7.6-7.8-8.0-8.2-8.5-8.8	200
	pH 8.0 – 9.7
904 20	range : 8.0-8.2-8.4-8.6-8.8-9.1-9.4-9.7	200
	pH 9.5 - 12.0
904 21	range : 9.5-10.0-10.5-11.0-11.5-12.0	200
	pH 10.5 – 13.0
904 22	range : 10.5-11.0-11.5-12.0-12.5-13.0	200
	pH 12.0 – 14.0
904 23	range : 12.0-12.5-13.0-13.5-14.0	200
Plastic box containing 200 strips 11x100 mm
PH-Fix indicator sticks – non bleeding
Recommended for pH measurement in weakly buffered or strongly alkaline solutions
PH-Fix indicator sticks are for the rapid measurement of of the pH of a water sample
In contrast to standard test papers, the pH-Fix indicator is chemically bound to the cellulose fibres, avoiding bleeding even in strongly alkaline samples.
Furthermore there are the following advantages :
-	Measurement of pH values is possible even in unbuffered solution, since the sticks can be left in the solution until until the final reaction   colour is obtained
-     Test samples are not contaminated by the indicator dyes.
Thus solution can be used for further investigations.
-     Colour of individual colour fields cannot run into each other.
This allows a more precise comparison the colour scale.
-	Specially developed indicator dyes guarantee a sha, differentiation between the individual pH values and a clear and easy comparison with the colour scale
-    Length and stability of plastic strips protect finger from
contact with the test solution
	pH 0 – 14
921 10	range : 0-1-2-3-4-5-6-7-8-9-10-11-12-13-14	100
	pH 0 - 14
921 11	range : 0-1-2-3-4-5-6-7-8-9-10-11-12-13-14	100
	pH 0.0 – 6.0
921 15	range : 0-0.5-1.0-1.5-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0	100
	pH 2.0 – 9.0
921 18	range : 2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0-6.5-7.0-7.5-	100
	8.0-8.5-9.0
	pH 4.5 – 10.0
921 20		100
	range : 4.5-5.0-5.5-6.0-6.5-7.0-7.5-8.0-8.5-9.0-9.5-10.0
	pH 6.0 – 10.0
921 22	range : 6.0-6.4-6.7-7.0-7.3-7.6-7.9-8.2-8.4-8.6-8.8-9.1-	100
	9.5-10.0
	pH 7.0 – 14.0
921 25	range : 7.0-7.5-8.0-8.5-9.0-9.5-10.-10.5-11.0-11.5-12.0-	100
	12.5-13.0-13.5-14.0
	pH 0.3 – 2.3
921 80	range : 0.3-0.7-1.0-1.3-1.6-1.9-2.3	100
	pH 1.7 – 3.8
921 90	range : 1.7-2.0-2.3-2.6-2.9-3.2-3.5-3.8	100
	pH 3.6 – 6.1
921 30	range : 3.6-4.1-4.4-4.7-5.0-5.3-5.6-6.1	100
	pH 5.1 – 7.2
921 40	range : 5.1-5.4-5.7-6.0-6.3-6.6-6.9-7.2	100
	pH 6.0 – 7.7
921 50	range : 6.0-6.4-6.7-7.0-7.3-7.7	100
	pH 7.5 – 9.5
921 60	range : 7.5-7.9-8.2-8.4-8.6-8.8-9.1-9.5	100
	pH 7.9 – 9.8
921 70	range : 7.9-8.3-8.6-8.9-9.1-9.4-9.8	100
Plastic box containing 100 strips 6 x 85 mm
PORTABLE MULTIPARAMETER PHOTOMETER
-     Field and laboratory use
-     Battery and mains operable
-     More than 100 preprogrammed calibration
-     Backlit graphic display with intuitive user guidance
-     Data storage according to GLP
-     USB interface for data transfer, update and power supply
-     Documentation of results according to GLP
-     Internal quality control according to ISO 9001
-     Fast photometer update – free of charge
-     Complete water and waste water analysis
-    Works under any condition
Model : Photometer PF-12 Plus
Type                : Filter photometer with microprocessor control, self-test and auto calibration,  Wavelength 340-860 nm
Optics             : Automatic filter wheel with 7 interference filters , Insensitive
to external light – no light shield required
Wavelengths    : 380/436/470/540/585/620/690 nm
Light source    : Tungsten lamp Detector          : Silicon photodiode Black value      : Automatic
Meas. mode     : over 100 preprogrammed tests (NANOCOLOR tube tests and
VISOCOLOR ECO tests)
Display            : Backlit graphic display, 64 x 128 pixels
Operation        : Display user guidance, plastic foil keyboard
Test Selection via test number of parameter lists.
12 languages (de,en,fr,es,it,ni,hu,pl,pt,cz,id,si) Interface         : USB 2.0
Ope. range      :  0-500C, up to 90 % relative humidity
Power supply   : via USB power supply, standard or rechargeable batteries) Dimensions      : 215 x 100 x 65 mm
Weight            : 0.7 kg
919 250	Photometer PF – 12 Plus
	Complete with :
	Software DVD, manual, 4 batteries, 4 empty test tubes, funnels, beaker,	on equested
	syringe,USB cable, calibration cuvette and certificate in rugged case
VISOCOLOR TESTS, which can be evaluated with PHOTOMETER PF-12
VISOCOLOR ECO Test Kits
	Ammonium 3
931 208		50
	range : 0.1 - 1.2 mg/l /NH -N   0.1-1.5 mg/l  NH + / NH
	4                                                4             3
	Ammonium 15
931 210		50
	range : 0.1 - 1.2 mg/l /NH -N   0.1-1.5 mg/l  NH + / NH
	4                                                4             3
	Chloride
931 218	range : 1 - 40 mg/l Cl2	90
	Chlorine 2 (free /total)
931 215	range : 0.1 - 2.0 mg/l Cl2	150
	Free Chlorine 2
931 216	Range : 0.1 - 2.0 mg/l Cl2	150
	Chlorine 6 (free and total)
931 217	Range :  0.05 – 6.00 mg/l Cl2	200
	Free chlorine 6
931 219	Range :  0.05 – 6.00 mg/l Cl2	400
	Chromium
931 220	Range : 0.02 - 0.50  mg/l / Cr(VI)	140
	0.04 – 1.00 mg/l CrO 2-
	4
	Copper
931 237	Range : 0.2 - 1.5 mg/l /Cu	100
	Cyanide
931 222	Range : 0.01 - 0.20  mg/l CN-	100
	Cyanuric Acid
931 223	Range : 10 - 100 mg/l Cya	100
	Fluoride
931 227	Range : 0.1 - 2.0 mg/l F-	150
	Hydrazine
931 230	Range : 0.05 – 0.40 mg/l N2H4	130
	Iron
931 226	Range : 0.04 - 1.00 mg/l Fe	100
	Manganese
931 238	Range : 0.1 – 1.5 mg/l Mn	70
	Nickel
931 240	Range : 0.1 - 1.5 mg/l Ni2+	150
	Nitrate
931 241	Range : 1 - 27 mg/l NO -N 4 – 120 mg/l NO- -	110
	3                                              3
	Nitrite
931 244	Range : 0.01 - 0.15 mg/l NO -N 0.02 – 0.50 mg/l NO- -	120
	2                                                       2
	Oxygen
931 288	range : 1 - 10 mg/l O2	50
	PH
931 270	range : 6.0 – 8.2 pH	150
	Phospate
931 284		80
	range : 0.2 - 5.0 mg/l PO -P           0.6 – 15.0 mg/l PO 3-
	4                                                                 4
	Potassium
931 232	range :  2 – 15 mg/l K+	60
	Silica
931 233	range :  0.1 – 1.4 mg/l Si      0.2 - 3.0 mg/l SiO2	100
	Sulphide
931 294	range :  0.05 - 0.80 mg/l S2-	90
	Zinc
931 298	range : 0.1 - 3.0 mg/l Zn2-	120
NANOCOLOR®  tube Test
	Aluminium
985 098	range : 0.02 - 0.70 mh/l Al3+	20
	Ammonium 3
985 003	range : 0.04 - 2.30 mg/l NH4-N	20
	0.05 – 3.00 mg/l NH +/NH
	4           3
	Ammonium 10
985 004	range : 0.2 - 8.0 mg/l NH -N  0.2 – 10.0 mg/l NH +/NH	20
	4                                                   4           3
	Ammonium 50
985 005	range : 1 - 40 mg/l NH -N 1 – 50 mg/l  NH +/NH	20
	4                                           4           3
	Ammonium 100
985 005	range : 1 - 40 mg/l NH -N 1 – 50 mg/l  NH +/NH	20
	4                                           4           3
	Ammonium 200
985 006	range : 30 - 160 mg/l NH -N 0 – 200 mg/l NH +/NH	20
	4                                            4           3
	AOX 3
985 007	range : 0.01 - 3.0 mg/l AOX	20
	BOD5 (Biochemical Oxygen Demand)
985 822	range :0.5 - 12.0 mg/l O2 2 – 3000 mg/l O2	25-50
	BOD5-TT
985 825	range : 0.5 - 7.0 mg/l O2 2 – 3000 mg/l O2	Nop-21
	Cadmium 2
985 014	range : 0.10 - 2.00 mg/l Cd2+	Okt-19
	Carbonate hardness 15
985 015	range : 1.0 - 15.0 0d 0.4 – 5.4 mmol/l H+	20
	Chloride 50
985 021	range : 0.5 – 50 mg/l Cl-	20
	Chloride 200
985 019	range : 5 - 200 mg/l Cl-	20
	Chlorine / Ozone 2
985 017	range : 0.05 - 2.50 mol/Cl2 0.05 – 2.00 mg/l O2	20
	Chlorine Dioxide 5
985 018	range : 0.2 - 5.0 mg/l Cl O2	20
	Chromate 5
985 024	range : 0.03 - 1.80 mg/l Cr(VI) 0.1 – 4.0 mg/l CrO 2-	20
	4
	COD 40
985 027	range : 2 – 40 mg/l O2	20
	COD 60
985 022	range : 5 – 60 mg/l O2	20
	COD 160
985 026	range : 15 – 160 mg/l O2	20
	COD 300
985 033	range : 50 – 300 mg/l O2	20
	COD 1500
985 029	range : 100 - 1500 mg/l O2	20
	COD 10000
985 023	range : 1.00 - 10.00 g/l O2	20
	COD 15000
985 028	range : 1.0 – 15.0 g/O2	20
	COD 60000
985 012	range : 1.0 – 15.0 g/O2	20
	Org. Complexing agents 10
985 052	range :  0.5 – 10.0 mg/l IBIC	Okt-19
	Copper 7
985 054	range : 0.1 - 7.0  mg/l Cu2+	20
	Cyanide 08
985 031	range :  0.01 - 0.80 mg/l CN-	20
	DEHA 1 (diethylhydroxylamine)
985 035	range :  0.05 - 1.00 mg/l DEHA	20
	Ethanol 1000
985 838	range : 0.10 – 1.0 g/l EtOH    0.013 – 0.130 Vol % EtUH	23
	Fluoride 2
985 040	range : 0.1 - 2.0 mg/l F-	20
	Formaldehyde 8
985 041	range : 0.1 – 8.0 mg/l HCHO	20
	Formaldehyde 10
985 046	range : 0.20 – 10.00 mg/l HCHO	20
	Hardness 20
985 043	range : 1.0 – 20.0 0d  5 – 50 mg/l Mg2+	20
	range : 0.2 - 3.6 mmol/l  10 – 50 mg/l Ca2+
	HC 300 (hydrocarbons)
985 057	range :  0.5 - 5.6 mg/l HC 30 – 300 mg/kg HC	20
	Iron 3
985 037	range :  0.1 - 3.0 mg/l Fe	20
	Lead 5
985 009	range : 0.1 - 5.0 mg/l Pb2+	20
	Manganese 10
985 058	range : 0.1 - 10.0 mg/l Mn	20
	Methanol 15
985 859	range : 0.2 – 15.0 mg/l Me OH	23
	Molybdenum 40
985 056	range : 1.0 -20.0 mg/l Mo(VI)    1.6 – 32.0 mg/l MoO 2-	20
	4
	Nickel 7
985 061	range : 0.1 - 7.0 mg/l Ni2+	20
	Nitrate 8
985 065	range : 0.30 - 8.00 mg/l NO -N 1.3 – 35.0 mg/l NO -	20
	3                                                  2
	Nitrate 50
985 064	range : 0.5 - 16.0 mg/l NO -N 0.03 – 1.50 mg/l NO -	20
	3                                                     2
	Nitrate 250
985 066	range : 4 - 60 mg/l NO -N   20 – 250 mg/l NO -	20`
	3                                                  2
	Nitrite 2
985 068	range : 0.01 - 0.45 mg/l / NO2-N 2 – 70 mg/l  NO3	20
	Nitrite 4
985 069	range : 0.1 – 4.0 mg/l NO -N 0.3 – 13.0  mg/l  NO -	20
	2                                                     2
	Total Nitrogen 22
985 083	range : 0.5 - 16.0 mg/N	20
	Total Nitrogen 220
985 088	range : 5 - 160 mg/N	20
	Organic acids 3000
985 050	range : 30 - 3000 mg/ CH3COOH	20
	Oxygen 12
985 082	range : 0.5 -12.0 mg/l O2	22
	Peroxide 2
985 871	range : 0.1 -2.0 mg/l H2O2	Okt-19
	pH
918 72	range :  6.5 - 8.2 pH	100
	Phenolic Index 5
985 074	range : 0.2 - 5.0 mg/l	20
	Potassium 50
985 045	range :  2 – 50 mg/l K+	20
	Ortho and total phospate 1
985 076	range : 0.1 - 1.5 mg/l PO4-P 0.2 – 5.0 mg/l PO 3-	19
	4
	Ortho and total Phospate 5
985 081	range : 0.2 - 5.0 mg/l PO4-P 0.5 – 15.0 mg/l PO 3-	19
	4
	Ortho and total Phospate 15
985 080	range : 0.3 - 15.0 mg/l PO -P 1.0 – 45.0 mg/l PO 3-	19
	4                                                 4
	Ortho and total Phospate 45
985 055	range : 5.0 - 50.0 mg/l PO -P 15 – 150 mg/l PO 3-	19
	4                                              4
	Ortho and total phospate 50
985 079	range : 10.0 - 50.0 mg/l PO -P 30 – 150 mg/l PO 3-	19
	4                                              4
	POC 200 (polyoxycarboxylic acid)
985 070	range : 20 – 120 mg/l 2 – 40 mg/l	20
	Residual Hardness 1
985 084	range : 0.05 - 1.00 0d     0.009 – 0.18 mmol/l	20
	Silver 3
985 049	range : 0.20 – 3.00 0d     0.009 – 0.18 mmol/l	20
	Strach 100
985 085	range : 5 – 100 mg/l	19
	Sulphate 200
985 086	range : 10 – 200 mg/l SO 2-	20
	4
	Sulphate 1000
985 087	range : 200 – 1000 Mg/l SO 2--	20
	4
	Sulphite 3
985 073	range :  0.05 – 3.00 mg/l S2-	20
	Sulphite 10
985 089	range :  0.2 - 10.0 mg/l SO 2-	20
	Sulphite 100
985 090	range : 5 – 100 mg/l SO32-	19
	Surfactants, anionic surfactants 4
985 032	range : 0.20 – 4.00 mg/l MBAS	20
	Surfactants, Cationic surfactants 4
985 034	range : 0.20 – 4.00 mg/l CTAB	20
	Surfactants, Nonionic surfactants 15
985 047	range : 0.3 – 15.00 mg/l Triton X-100	20
	Thiocyanate 50
985 091	range : 1.0 - 50.0 mg/l SCN-	20
	Tin 3
985 097	range : 0.1 - 3.0 mg/l Sn	18
	TOC 25 (Total Organic Carbon)
985 093	range : 2.0 – 25.0 mg/l TOC	10
	TOC 60 (Total Organic Carbon)
985 094	range : 10 – 60 mg/l TOC	10
	TOC 600 (Total Organic Carbon)
985 099	range : 40 – 600 mg/l TOC	10
	TTC / Sludge activity 150
985 890	5 – 150 ug TPF	20
	0.050 – 2.300 E
	Zinc 4
985 096	range : 0.1 - 4.0  mg/l Zn2+	20
PROGRAMMABLE HEATING BLOCK for SAMPLE DIGESTION Model : Vario C2
Constant digestion conditions
•  High temperature stability
•  Electronic overheating protection
•  Graphic display of heating curves
Maximum safety for the user
•  Extra strong safety covers as contact
protection (10 mm, replaceable)
on the heating block surface
•  Lockable protective lids
•  Display alert in case of open protective lid
Instrument:  NANOCOLOR ® VARIO C2
Programmable heating blocks for chemical-analytical digestions
Type:
with 12 holes / for test tubes with 16 mm OD (outer diameter) /
integrated protective lids
Display:         Coloured, backlit LCD touch screen
Operation:     Display menu guidance via touch screen
Temperature 5 pre-programmed temperatures: 70 / 100 / 120 / 148 / 160 °C
s:                   7 free memory locations for individual temperature settings
Temperature 40 – 160 °C (1 °C increments)
range:
Temperature ± 1 °C (according to DIN, EN, ISO and EPA methods)
stability:
Warm-up
time: Heating
times:
from 20 °C to 160 °C within 10 minutes
4 pre-programmed heating times: 30 min / 60 min / 120 min /
cont.
8 free memory locations for individual heating times
Time range:  0h:01min – 9h:59min (increments 0h:01min)
Replaceable safety covers as contact protection
Safety:
Lockable protective lids
Overheating protection
Interfaces:    Bidirectional serial RS 232, USB A (master) and USB B (slave)
Analytical quality control:
Wi th  N A N OC OLOR®  T-Set  (REF  919  917)
optional fully automatic calibration and preparation of test certificates for instrument control and monitoring according to ISO
9001)
Update:         Via internet and USB stick
Power supply:
Power
110 – 230 V~, 50/60 Hz
consumption 125/250 VA
Dimensions	169 x 282 x 146 mm
(B x T x H)
Weight:         approx. 2.0 kg
Marking:        CE
Warranty:      2 years
Suitable for all NANOCOLOR ® digestion methods
Application                                           Temperatur e
Time
COD (DIN ISO 15705)                                       148 °C            120 min
High-speed COD                                           160 °C             30 min
TOC                                                    120 °C            120 min total-Nitrogen                                             120 °C             30 min
total-Phosphorous                                          120 °C             30 min
Organic acids                                             100 °C             10 min
total-Metals (Cadmium, Chromate, Iron, Cobalt, Copper, Nickel, Zinc)
120 °C             30 min
AOX                                                    120 °C             30 min
Hydrocarbons                                             148 °C            120 min
Programmable, user-defined programs                        40 - 160 °C       0h:01min -
9h:59min
919 350     NANOCOLOR ® VARIO C2
Heating block incl. protective lids, power line cord, USB cable,
software-DVD, certificate and manual                                                                    on requested
MULTIPARAMETER PHOTOMETER
-     Field and laboratory use
-     Suitable for universal use in water and wastewater analysis
-	Illuminated graphic display with use guidance shows all the important data at a glance
-     Automatic storage can be switched on and off in the configuration menu
-     Easy updating and data processing
-     NANOCOLOR Bar Code Technology (NBT)
-     Universal cuvette holder
Model : Photometer NANOCOLOR 500 D
Type                          : single beam filter photometer with microprocessor control, self
test and auto calibration, wavelength range 340-860 nm Optics                       : automatic filter wheel with 10 interference filters Wavelengths              : 345/365/436/470/520/540/585/620/690/800 nm
plus 2 compartments for additional filters wavelength accuracy  : ± 2 nm, bandwidth at half transmission 10-12 nm Light source               : Tungsten lamp
Detector                    : Silicon photodiode
Blank value                : automatic and prestored
Measuring mode        : over 100 preprogrammed tests, 99 freely programmable
methods, extinction, transmission, factor, kinetics, two-point calibration
Measuring range        :  about 3 E neutral sign
Photometric accuracy : ± 1 % Stability                     : < 0.002 E/h
Cuvette holder           :  round tubes 16 mm, rectangular cuvettes 10,20,50 mm
Data Memory             : 500 measurement data records, GLP compatible
Display                      : graphic display,backlight, 64x128 pixels, 10 languages
Operation                  : bar code technology, display user guidance, foil-coveredpush-buttons
Interfaces                  : USB 1.1 and bi-directional serial RS232
Update                      : via internet / PC
Operating range         : 0-50 0C, up to 90% relative humidity
Power supply             : 100-240V,50/60 Hz / 6V. 3.2 Ah via built-in battery with charge regulator and
Dimensions               : 227 x 282 x 105 mm
919 500	PHOTOMETER NANOCOLOR 500 D
	Complete with :	on requested
	Software CD, manual dust cover, mains power supply, data cable, USAB cable,
	and calibration cuvette in stable transport bag
NANOCOLOR®  tests, which can be evaluated with PHOTOMETER 500D
NANOCOLOR®  tube Test
	Aluminium
985 098	range : 0.02 - 0.70 mh/l Al3+	20
	Ammonium 3
985 003	range : 0.04 - 2.30 mg/l NH -N 0.05 – 3.00 mg/l NH +/NH	20
	4                                                    4           3
	Ammonium 10
985 004	range : 0.2 - 8.0 mg/l NH -N 0.2 – 10.0 mg/l NH +/NH	20
	4                                                 4           3
	Ammonium 50
985 005	range : 1 - 40 mg/l NH -N 1 – 50 mg/l  NH +/NH	20
	4                                          4           3
	Ammonium 200
985 006	range : 30 - 160 mg/l NH -N 40 – 200 mg/l NH +/NH	20
	4                                              4           3
	AOX 3
985 007	range : 0.01 - 3.0 mg/l AOX	20
	BOD5 (Biochemical  Oxygen Demand)
985 822	range :0.5 - 12.0 mg/l O2 2 – 3000 mg/l O2	25-50
	BOD5-TT
985 825	range : 0.5 - 7.0 mg/l O2 2 – 3000 mg/l O2	Nop-21
	Cadmium 2
985 014	range : 0.10 - 2.00 mg/l Cd2+	Okt-19
	Carbonate hardness 15
985 015	range : 1.0 - 15.0 0d 0.4 – 5.4 mmol/l H+	20
	Chloride 50
985 021	range : 0.5 - 50 mg/l Cl-	20
	Chloride 200
985 019	range : 5 - 200 mg/l Cl-	20
	Chlorine / Ozone 2
985 017	range : 0.05 - 2.50 mol/Cl2 0.05 – 2.00 mg/l O2	20
	Chlorine Dioxide 5
985 018	range : 0.2 - 5.0 mg/l Cl O2	20
	Chromate 5
985 024	range : 0.03 - 1.80 mg/l Cr(VI) 0.1 – 4.0 mg/l CrO 2-	20
	4
	COD 40
985 027	range : 2 - 40 mg/l O2	20
	COD 60
985 026	range : 5 - 60 mg/l O2	20
	COD 160
985 022	range : 15 - 160 mg/l O2	20
	COD 300
985 033	range : 50 - 300 mg/l O2	20
	COD 1500
985 029	range : 100 - 1500 mg/l O2	20
	COD 10000
985 023	range : 1.00 - 10.00 g/l O2	20
	COD 15000
985 028	range : 1.0 - 15.0 g/O2	20
	Colour
	range : 10 - 500 mg/l                          (no reagents required)
	Org. Complexing agents 10
985 052	range :  0.5 - 10.0 mg/l IBIC	Okt-19
	Copper 7
985 054	range : 0.1 - 7.0  mg/l Cu2+	20
	Cyanide 08
985 031	range : 0.01 - 0.80 mg/l CN-	20
	DEHA 1 (diethylhydroxylamine)
985 035	range :  0.05 - 1.00 mg/l DEHA	20
	Ethanol 1000
985 838	range : 0.10 – 1.0 g/l EtOH 0.013 – 0.130 Vol % EtUH	23
	Extinction
	range : 0.010 – 2500 E (no reagents required)
	Fluoride 2
985 040	range : 0.1 - 2.0 mg/l F-	20
	Formaldehyde
985 041	range : 0.1 - 8.0 mg/l HCHO	20
	Hardness 20
	range : 1.0 - 20.0 0d  5 – 50 mg/l Mg2+
985 043	range : 0.2 - 3.6 mmol/l  10 – 50 mg/l Ca2+	20
	Residual Hardness
985 084	range : 0.02 – 1.00 0d 0.004 – 0.180 mmol /	20
	HC 300 (hydrocarbons)
985 057	range :  0.5 - 5.6 mg/l HC 30 – 300 mg/kg HC	20
	Iron 3
985 037	range :  0.1 - 3.0 mg/l Fe	20
	Leads
985 009	range : 0.1 - 5.0 mg/l Pb2+	20
	Manganese 10
985 058	range : 0.1 - 10.0 mg/l Mn	20
	Methanol 15
985 859	Range : 0.2 - 15.0 mg/l Me OH	23
	Molybdenum 40
985 056	range : 1.0 -20.0 mg/l Mo(VI) 1.6 – 32.0 mg/l MoO 2-	20
	4
	Nickel 7
985 061	range : 0.1 - 7.0 mg/l Ni2+	20
	Nitrate 50
985 064	range : 0.5 - 16.0 mg/l NO -N 0.03 – 1.50 mg/l NO -	20
	3                                                    2
	Nitrite 2
985 068	range : 0.01 - 0.45 mg/l / NO2-N 2 – 70 mg/l  NO3	20
	Nitrite 4
985 069	Range : 0.1 – 4.0 mg/l NO -N 0.3 – 13.0  mg/l  NO -	20
	2                                                     2
	Total Nitrogen 22
985 083	range : 0.5 - 16.0 mg/N	20
	Total Nitrogen 220
985 088	range : 5 - 160 mg/N	20
	Oxygen 12
985 050	Range : 0.5 – 12.0 mg/l O2	12
	Peroxide
985 871	range : 0.1 -2.0 mg/l H2O2	Okt-19
	pH
918 72	range :  6.5 - 8.2 pH	100
	Phenolic Index 5
985 074	range : 0.2 - 5.0 mg/l	20
	Ortho and total phospate 1
985 076	range : 0.1 - 1.5 mg/l PO4-P 0.2 – 5.0 mg/l PO 3-	19
	4
	Ortho and total Phospate 5
985 081	range : 0.2 - 5.0 mg/l PO4-P 0.5 – 15.0 mg/l PO 3-	19
	4
	Ortho and total Phospate 15
985 080	range : 0.3 - 15.0 mg/l PO -P 1.0 – 45.0 mg/l PO 3-	19
	4                                                 4
	Ortho and total Phospate 45
985 055	range : 5.0 - 50.0 mg/l PO -P 15 – 150 mg/l PO 3-	19
	4                                             4
	Ortho and total phospate 50
985 079	range : 10.0 - 50.0 mg/l PO -P 30 – 150 mg/l PO 3-	19
	4                                             4
	POC 200 (polyoxycarboxylic acid)
985 070	range : 20 – 120 mg/l 2 – 40 mg/l	20
	Potassium 50
985 045	range : 2 - 50 mg/ K+	20
	Oxygen 12
985 082	range : 0.5 – 12.0 mg/l O2	22
	Strach 100
985 085	range : 5 - 100 mg/l	19
	Sulphate 200
985 086	range : 10 - 200 mg/l SO 2-	20
	4
	Sulphate 1000
985 087	range : 200 - 1000 Mg/l SO 2--	20
	4
	Sulphite 10
985 089	range :  0.2 - 10.0 mg/l SO 2-	20
	3
	Sulphite 100
985 090	range : 5 - 100 mg/l SO 2-	19
	3
	Nonionic surfactants 15
985 047	range : 0.3 – 15.0 mg/l triton X-100	20
	Thiocyanate 50
985 091	range : 1.0 - 50.0 mg/l SCN-	20
	Tin 3
985 097	range : 0.1 - 3.0 mg/l Sn	18
	TOC 70 (Total Organic Carbon)
985 094	range : 2 - 70 mg/l C	20
	TTC / slugde activity 150
985 890	range : 5 – 150 mg TPF	20
	Zinc 4
985 096	range : 0.1 - 4.0  mg/l Zn2+	20
NANOCOLOR®  tests, which can be evaluated with PHOTOMETER 500D NANOCOLOR STANDARD TESTS
	Ammonium
918 05	range : 0.01 – 2.0 mg/l NH -N     0.01- 2.5 mg/l NH4+ (690 nm)	100
	4
	Chloride
918 20	range : 0.02 – 10.0 mg/l Cl‑ (470 nm)	220
	Chlorine
918 16	range : 0.02 – 10.0 mg/l Cl2 (540 nm)	250
	Chlorine Dioxide
918 163	range : 0.04 – 4.00 mg/l ClO2 (540 nm)	50
	Chromate
918 25	range : 0.01 – 3.0 mg/l Cr(VI)    0.01–6.0 mg/l CrO  2- (540 nm)	250
	4‑
	Cobalt
918 51	range : 0.002 – 0.70 mg/l Co2+ (540 nm)	220
	Colour (Hazen / DIN)
	range : 5 – 500 mg/l Pt Hazen      0.2 – 20.01/m  (436 nm)
	Copper
918 53	range : 0.01 – 10.0 mg/l Cu2+ (585 nm)	250
	Cyanide
918 30	range : 0.001 –0.50 mg/l CN- (585 nm)	250
	Fluoride
918 142	range : 0.05 – 2.0 mg/l F- (585 nm)	200
	Hydrazine
918 44	range : 0.002 – 1.50 mg/l N2H2 (436 nm)	220
	Iron
918 36	range : 0.01 – 15.0 mg/l Fe (470 nm)	250
	Manganese
918 60	range : 0.01 – 10.0 mg/l Mn (470 nm)	250
	Nickel
918 62	range : 0.01 –10.0 mg/l Ni2+ (436 nm)	250
	Nitrate
918 65	range : 0.9 – 30.0 mg/l NO  N     2 – 140 mg/l NO -   (365/385 nm)	250
	3                                                 3
	Nitrate Z
918 63	range : 0.02 – 1.0 mg/l NO  N     0.1 – 5.0 mg/l NO -    (520 nm)	100
	3                                                     3
	Nitrite
918 67	range : 0.02 – 0.03 mg/l NO - N    0.05– 1.00 mg/l NO - (520 nm)	220
	2                                                         2
	Phenol
918 75	range : 0.01 – 7.0 mg/l Phenol      (470 nm)	440
	Ortho- Phosphate
918 77	range : 0.04 – 6.5 mg/l PO P     0.1 – 20 mg/l PO 3- (690 nm)	440
	4                                                 4
	Ortho- Phosphate
918 78	range : 0.2 – 17 mg/l PO P     0.5 – 50 mg/l PO 3- (436 nm)	440
	4                                                 4
	Silica
	range : 0.01 – 5.00 mg/l Si    0.02 – 10.0 mg/l SiO2 (690 nm)
918 48	0.002 – 0.100 mg/l S-      0.005-0.200 mg.l Si O 3   (800 nm)	250
	2
	Sulphide
918 88	range : 0.01 – 3.0 mg/l S2-         (620/660 nm)	250
	Turbidity (formazine/DIN)
	range : 1 – 100 TE/F (=FAU)      (620/860 nm)
	Zinc
918 95	range : 0.02 – 3 mg/l Zn2+ (620 nm)	250

.

.
..
.
