Jual Gas Analyzer Jual Smoke Opacity Meter alat uji Emisi asap kendaraan bensin & Solar alat uji Emisi kendaraan UJI EMISI KENDARAAN BERMOTOR | ALAT UJI ASAP
KENDARAAN BERMOTOR, DISTRIBUTOR, PORTABLE EXHAUST GAS ANALYZER
INDONESIA, EXHAUST GAS ANALYZER, ALAT UJI EMISI MOBIL, UJI ASAP
KENDARAAN BERMOTOR , ALAT UKUR EMISI KENDARAAN BAHAN BAKAR BENSIN specification PDF Spek PDF daftar Harga Alat Uji Emisi Mobil Alat uji emisi Sepeda Motor penjual alat uji emisi kendaraan di Indonesia Distributor Indonesia Daftar harga alat uji emisi kendaraan pengadaan alat uji emisi kendaraan standart alat uji emisi kendaraan DIESEL SMOKE TESTER ALAT UJI EMISI KEDARAN BERBAHAN BAKAR BENSIN ALAT UJI EMISI KENDARAAN BERBAHAN BAKAR SOLAR===============================
=====
===========
===================
===========================
=====================================
1) GAS ANALYZER
TYPE : HG510
BRAND : HESHBON- KOREA
GAS ANALYZER for Gases : CO & HC
Hub : 081362449440 ( Mr Jonathan )
eMail : b081362449440@yahoo.com
Specification :
- MEASUREMENT :
NDIR(Non-dispersive infrared)and electronical
-CO (Carbon Monoxide)
-HC (Hydro Carbons)
- STANDARD ACCESSORIES
-Exhaust probe and tap assembly
-Sample hose / power cord / moisture trap filter element
- OPTIONAL ACCESSORIES
- NOx sensor
- PC interface software
- RS 232 C
- EXTERNAL DIMENSIONS : 285(W) X 410(D) X155(H)mm
- NET WEIGHT : 10kg
- TECHNICAL DATA
- CO measurement range : 0-9.99% with 0.01% resolution
- HC measurement range : 0-9999 ppm with 1ppm res.
- AFR range : 0-99.0 with 0.1 res.
- Ambient temperature : 0 – 40
- Microprocessor control
- Automatic zero and span adjustment
- Full digital display visible in any light
- LED indicators for all functions
- Membrane switches -Serial PC interface
- Fast response time
- Automatic calibration
- Software supported gas calibrating procedure
- Flow absence detector
- Response time :10sec
- Pre-heating time :app. 3-8min.
- Power supply :110/220/240Vac 50/60Hz
.=========
.================
.====================
..========================
..=============================
.=====================================
===============================================

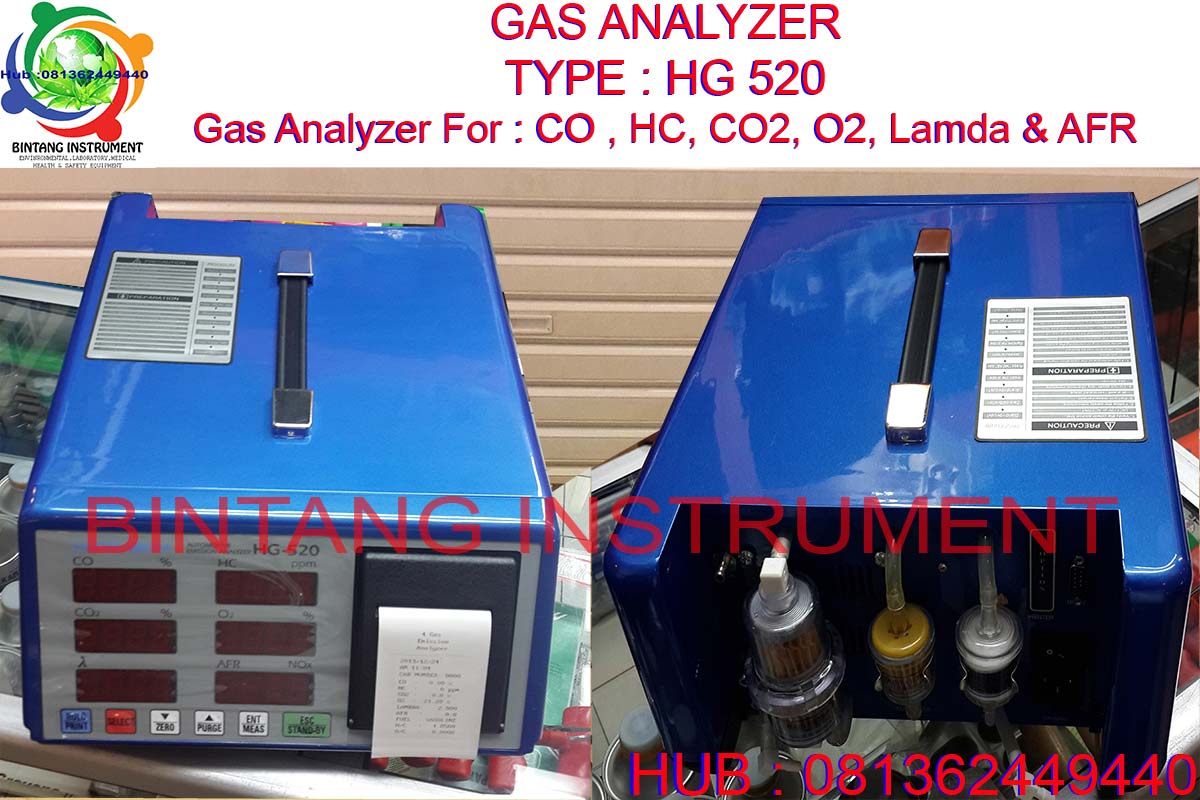

2) GAS ANALYZER
TYPE : HG520
BRAND : HESHBON- KOREA
GAS ANALYZER for Gases : CO2, CO , HC, O2, Lamda & AFR ( Air Fuel Ratio )
Hub : 081362449440 ( Mr Jonathan )
eMail : b081362449440@yahoo.com
Specification :
- MEASUREMENT :
NDIR(Non-dispersive infrared)and electronical
-CO (Carbon Monoxide)
-HC (Hydro Carbons)
-CO 2 (Carbon Dioxide)
-O2 (Oxygen)
-LAMBDA & AFR (Air-Fuel-Ratio)
- STANDARD ACCESSORIES
-Exhaust probe and tap assembly
-Sample hose / power cord / moisture trap filter element
- OPTIONAL ACCESSORIES
- NOx sensor
- PC interface software
- RS 232 C
- EXTERNAL DIMENSIONS : 285(W) X 410(D) X155(H)mm
- NET WEIGHT : 10kg
- TECHNICAL DATA
- CO measurement range : 0-9.99% with 0.01% resolution
- HC measurement range : 0-9999 ppm with 1ppm res.
- CO2 measurement range : 0-20.0%with 0.01%res.
- O2 measurement range : 0-25.00% WITH 0.01%res.
- LAMBDA range : 0-2.000 with0.01%res.
- AFR range : 0-99.0 with 0.1 res.
- Ambient temperature : 0 – 40
- Microprocessor control
- Automatic zero and span adjustment
- Full digital display visible in any light
- LED indicators for all functions
- Membrane switches -Serial PC interface
- Fast response time
- Automatic calibration
- Software supported gas calibrating procedure
- Flow absence detector
- Response time :10sec
- Pre-heating time :app. 3-8min.
- Power supply :110/220/240Vac 50/60Hz.
.=========
.================
.====================
..========================
..=============================
.=====================================
===============================================
3) DIESEL SOMKE OPACITY METER
TYPE : HD-410
Brand : HESHBON - KOREA
Hub : 081362449440 ( Mr Jonathan ) eMail : b081362449440@yahoo.com
Specification :
- Model HD-410
- Measu. ITEMS Smoke opacity, Smoke Dencity, RPM(option)
- Light Source Green LED(565nm)
- Detection Photodiode
- Shell Length & Inside.Diam. Length : 215mm , Inside diameter : 21mm
- Shell Tempur. Maintain constantly about 80
- Smoke :
* Measuring Range : 0.0 ~ 100%
* Rosolution : 0.1%
* Display : 4Digit 7 Segment LED
- Light :
* Measuring Range :0.00 ~21.42m-1
* Rosolution : 0.01m-1
* Display : 4Digit 7 Segment LED
- RPM :
* Measuring Range :0 ~ 8000 rpm
* Rosolution : 10 rpm
* Display : 4Digit 7 Segment LED
- OIL :
* Measuring Range : 0 ~ 50
* Rosolution : 1
* Display : 4Digit 7 Segment LED
- Repeat Within 1%
- Precision Within ±1% (RPM :±80rpm)
- Responding time 0.5second(90%)
- Smoke detecting speed 60 times per a second
- Display of smoke density 4 times per a second
- Data dispatch RS232 Method, 4 times per a second (Ref. Protocol)
- Warming up time About 6 minutes
- Using filter 0.5second Besel low pass digital filter
- Electricity source 220V AC / 110V AC 60Hz
- Expending Wattage About 50W
- Proper temperature 0~40
- Size 400(W) x 170(D) x 200(H) mm (excluding prop)
- Weight About 5kg
- Probe length 760mm
- Probe inside diam. Inside diameter: 10mm
- Option RPM sensor (battery re-charge method), Temperature sensor
- Supplied Accessory Probe, Electric code, Manual
