SONIC TENSION METER===============================
Type : U-508 ( Discontinue )
Merk : UNITTA
Negara Asal : Jepang
New Model Replacement

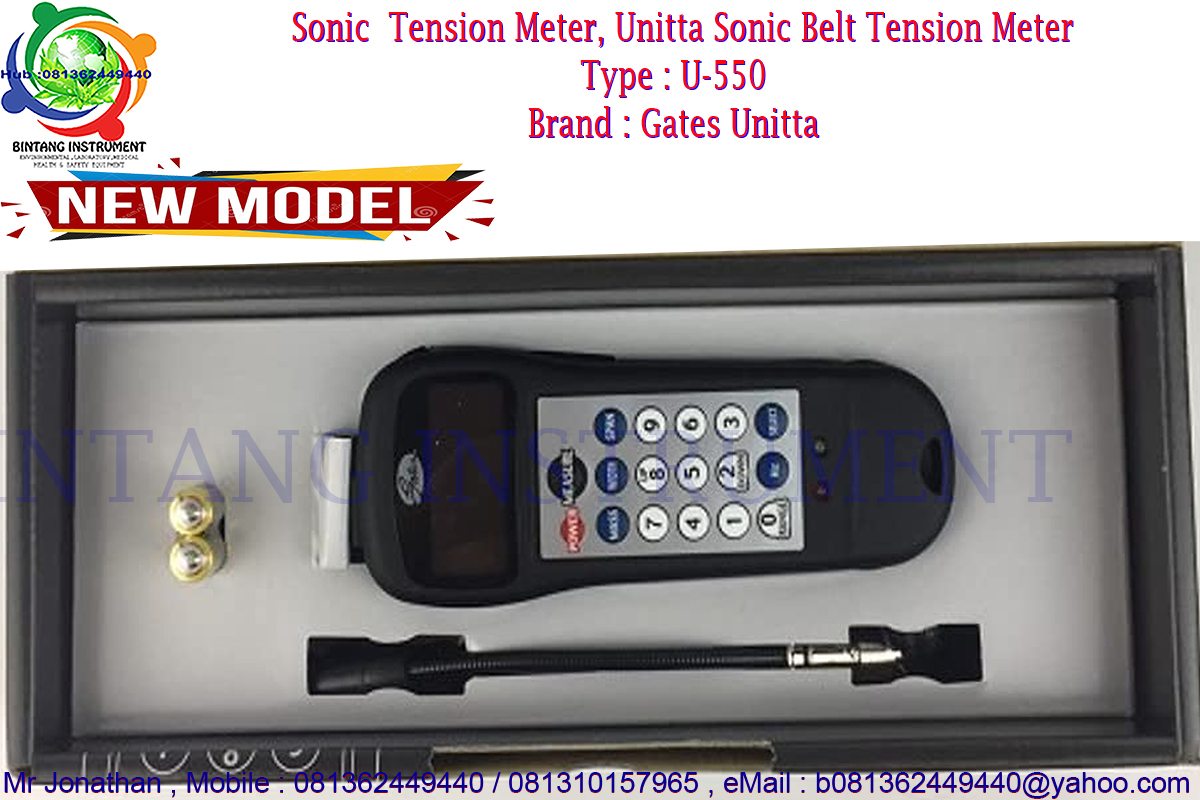

SONIC TENSION METER
Type : U-550 ( New Model )
Merk : UNITTA
Negara Asal : Jepang
Specification:
Tension value: 0.01-99900N
Frequency range: 10-5000hz
1.
The vibration waveform under different conditions can be measured by
analog signal processing, and the period of the waveform can be read,
and the tension value can be calculated by the processing of the
frequency of the weekly wave number
2. Automatic noise removal and noise interference
3,
large screen LCD display, can display tension value and frequency value
at the same time, the unit tension of measured values and standard
values, the display unit mass, the conveyor belt width and length of the
conveyor belt, three kinds of display mode you can choose any one of
them
4. With background lighting design, it can be used to determine whether the background light is used
5. The microphone is more sensitive to low frequency, which can be used for the measurement of large conveyor belts
It's small, light and human
Features:
1. The units measured output are Hertz, pound, kg and Newton
2. Frequency measurement ranges from 10 to 5 kilohertz
3. Frequency conversion filtration
4. Automatic adjustment of instrument sensitivity
5. Storage of 40 sets of belt data
6. LCD screen, with background light
7. 120 g in weight
Technical parameters:
Tension value: 0.01-99900N
Frequency range: 10-5000hz
Features:
1.
The vibration waveform under different conditions can be measured by
analog signal processing, and the period of the waveform can be read,
and the tension value can be calculated by the processing of the
frequency of the weekly wave number
2. Automatic noise removal and noise interference
3,
large screen LCD display, can display tension value and frequency value
at the same time, the unit tension of measured values and standard
values, the display unit mass, the conveyor belt width and length of the
conveyor belt, three kinds of display mode you can choose any one of
them
4. With background lighting design, it can be used to determine whether the background light is used
5. The microphone is more sensitive to low frequency, which can be used for the measurement of large conveyor belts.
Ol Model Type : U508
Specification of Sonic Wave Belt tension Meter U-508
* Feature : Graphic LCD screen, Equipped with backlight, 46 types of belt, and Unit mass preinstalled, Automatic gain control, 20 types of setting memory, Automatic trigger, and automatic power-off function
* Measurement range : 10Hz~ 5, 000Hz
* Power supply : Alkaline dry cell ( AAA x 2) .
* Outer dimension : 59 wide x 26 thick x 160 long ( mm)
* Mass : 120g
* Accessory :
Sonic wave microphone ( flexible arm type)
Carrying case
Alkaline dry cell ( AAA x 2)
* * Example of measurement
1) Example 1: Timing belt
[ For 8YU tooth type x 20 mm wide, span length 250 mm]
Input: M = 5.2
( unit mass per g/ mm wide x m long)
W = 20 ( mm wide)
S = 250( mm span length)
Relation between tension ( N)
and frequency ( Hz) 2.6N/
10 Hz ~ 9.360 N/ 600 Hz
2) Example 2: V-ribbed belt
[ For micro V/ PK section x 5 ribs, span length 250 mm]
Input: M = 21.0
( unit mass per g/ rib x
m length)
W = 5.0 ( number of ribs) ,
S = 250 ( mm span length)
Relation between tension ( N)
and frequency ( Hz) 2.63N/
10 Hz ~ 9.450 kg/ 600 Hz
3) Example 3: Steel wire
[ For steel wire of diameter 0.6mm, span length 50 mm]
Input: M = 1.3
( unit mass per g/ mm
length)
W = 1.0 ( Enter 1 because
steel wire is single.)
Relation between tension ( N)
and frequency ( Hz) 0N/
10 Hz ~ 325N/ 5000 Hz
Note) Tension calculation system and input capacity:
[ M = 000.0g/ m, W = 000.0 mm/ # R, S = 0000 mm]
Note in use
Read the operation manual carefully for proper use.
Always make sure that the machine is stopped by turning off motor power or the like before measuring the tension.
Use this product only for measuring the tension.
Adhesion of water or grease to this product, or shock given to the unit by dropping may cause failure or malfunction. Use caution well enough in handing the unit.
BINTANG INSTRUMENT
HP :
081362449440 / 081310157965
Email
: b081362449440@yahoo.com
Up :
Mr Jonathan
===============================
===============================

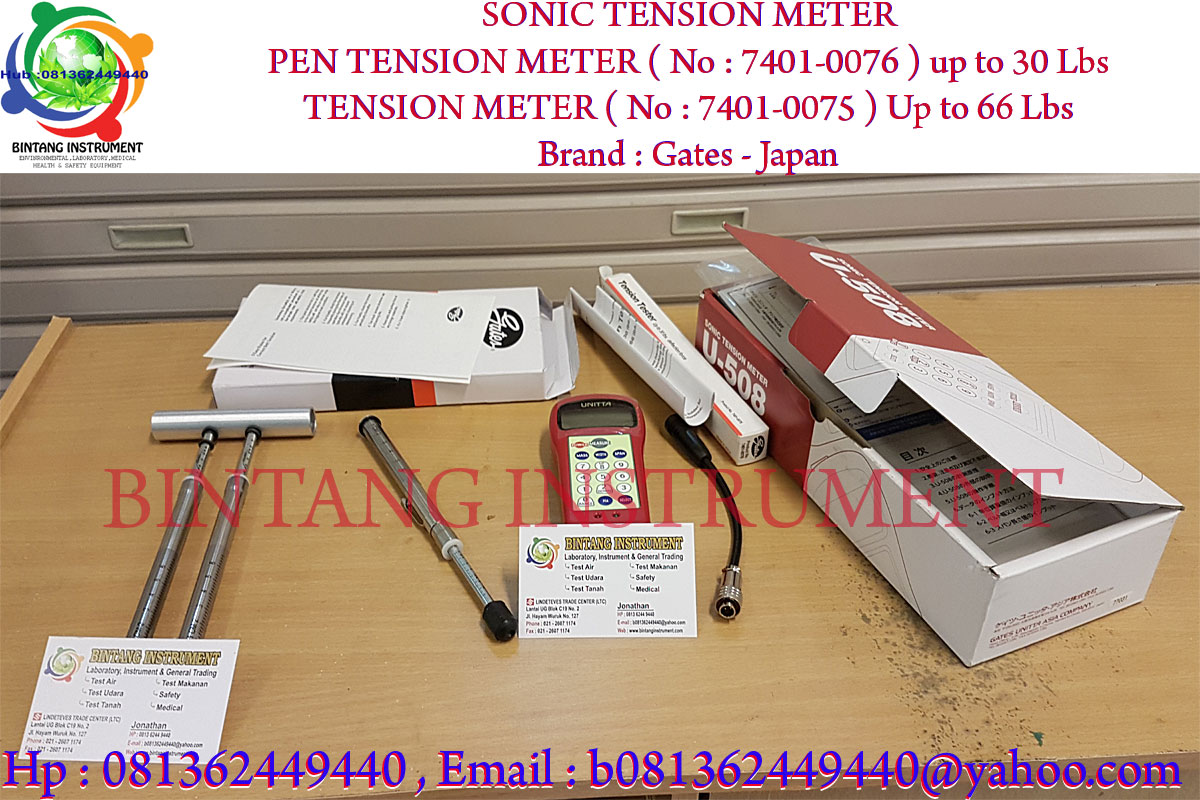

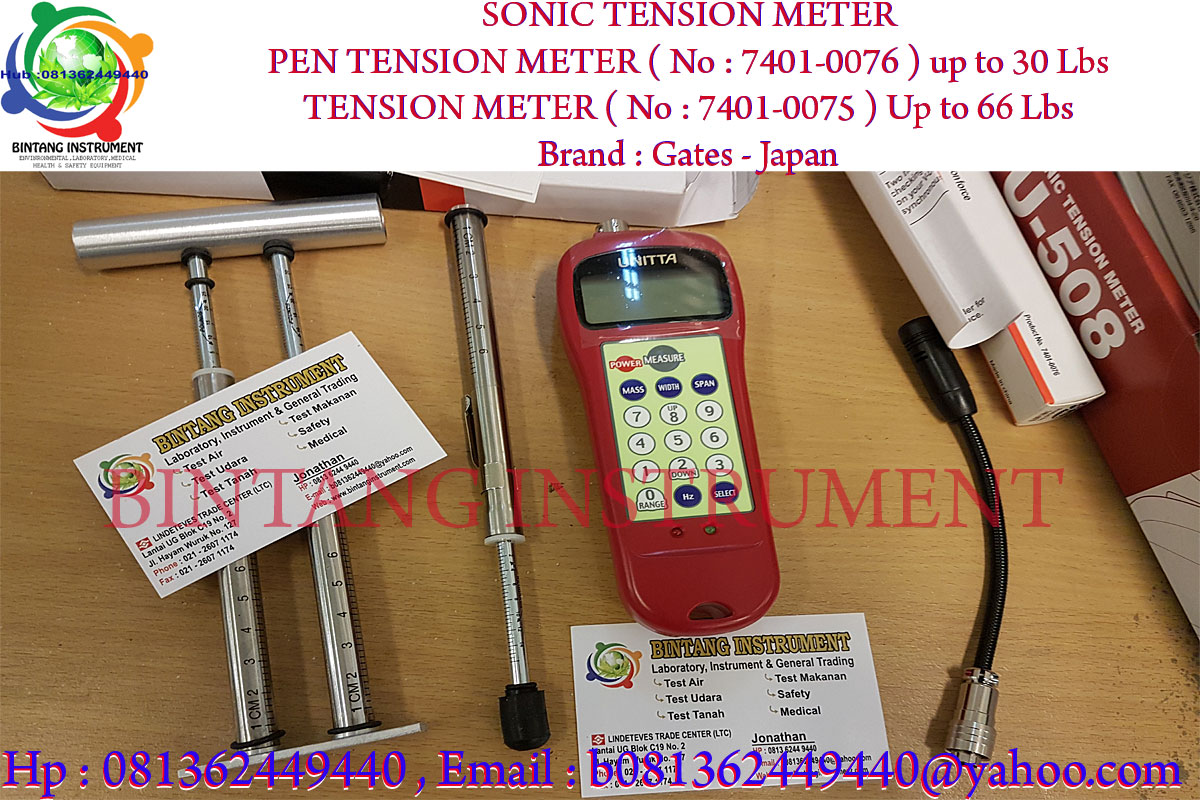

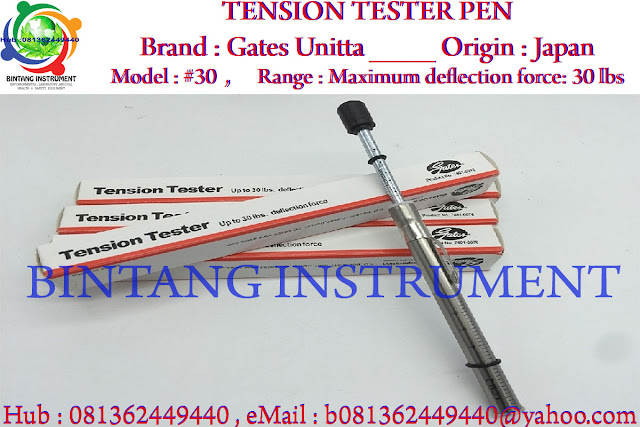

2) Analog Tension Tester
Model : #30
Capacity : 30 Lbs
Brand : Gates - Unitta
Negara Asal : Jepang
BINTANG INSTRUMENT
HP :
081362449440 / 081310157965
Email
: b081362449440@yahoo.com
Up :
Mr Jonathan
===============================
===============================
3) Analog Tension Tester
Model : #66
Capacity : 66 Lbs
Brand : Gates - Unitta
Negara Asal : Jepang
