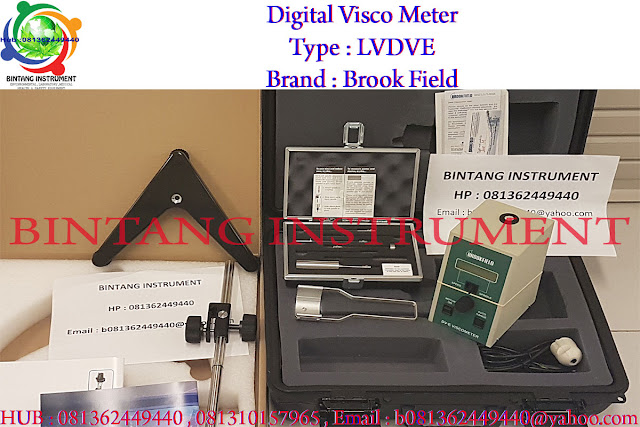

DIGITAL VISCO METER===============================
BRAND : BROOKFIELD
TYPE : LVDVE series.
Specification :
The DVE combines economy and ease of operation with traditional
Brookfield excellence to provide reliable viscosity readings. Easy to
use interface allows operators to change test parameters easily and test
like a pro no time!
The digital display ensures easy and accurate readout of test results
for simultaneous measurement of viscosity and torque. Quality of
manufacture guarantees reliable performance and long life.Features & Benefits
- Low cost and easy to use
- Direct display in:
- cP or mPa·s
- % Torque, Spindle, and Speed
- Torque measurement accuracy: 1% of full scale range
- Repeatability: 0.2% of full scale range
- Compatible with all Brookfield accessories
- NIST traceable viscosity standards available
- 18 speeds for greater range capability (0.3 to 100 rpm)
Specifications
SPRING TORQUE
Each of our standard Laboratory Viscometers/
Rheometers are supplied with an internal spring used to calculate the
viscosity of a material. These springs have different measuring
capabilities:
- LV is for low viscosity materials and can measure the “thinnest†materials. Typical examples include inks, oils, and solvents.
- RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
- HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
- HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.
Learn About Viscosity
Need help? Our Education section may be just the thing to clarify unfamiliar terms and help start you on your way to a better understanding of viscosity. Learn about viscosity and rheological relationships, Newtonian and non-Newtonian fluids, and how a Brookfield instrument can help your production process and much more.Help Me Choose
Having difficulties determining what instrument is best for you? Try our Help Me Choose section for guidance on the model selection process, spindle construction considerations, and other useful information to help you make an informed decision on the best instrument for your application.Annual Calibration Service (recommended)
We recommend that this instrument be returned to Brookfield or an authorized dealer on an annual basis for our Calibration & Certification Service. Having this annual maintenance done will ensure the instrument's long life and optimal performance.
https://www.youtube.com/watch?v=xM-K0otV1Ew
http://qa.ff.up.pt/fa2014/pdf/fa-tl4-m1.pdf
LVDV-E Viscometer - Low Viscosity
Jual Viscometer Brookfield LVDVE , Jual alat uji kekentalan Liquid , jual alat uji kekentalan cairan ,
===============================================
DIGITAL VISCO TESTER
Type : VT06
Merk : RION - Japan
Specification :
The Rion VT-05/ VT-06 Viscotester provides a unique objective and cost-effective means of directly measuring the viscosity of liquids/ fluids. The viscosity of many substances is of crucial importance yet, up to now, measurement of this quantity has often been achieved through indirect, complicated and/ or expensive methods. Application areas include chemicals, paint, petrochemicals, adhesives and foodstuffs.
The VT-05 ( for lower viscosity fluids) and VT-06 ( for higher viscosity fluids) consist of a hand-held ( or it can be mounted on a stand) meter with an integral digital display with a rotor that is connected to the rear of the device. With the meter held ( approximately) horizontally, the appropriate rotor is submerged in the fluid to be tested. The meter will then give a direct digital readout of the viscosity of the fluid in millipascal/ decipascal seconds ( the SI unit for Viscosity) .
The VT-05 can measure up to 300 mPas. The VT-06 can measure up to 4000 dPas.
Examples of typical viscosity ( at 23° c) :
Milk - 2.6 mPas;
Olive Oil - 71 mPas;
Tomato Ketchup - 43 dPas;
Toothpaste - 320 dPas.
A summary of features for the VT-05/ VT-06:
Direct, objective and repeatable measurement of viscosity;
Extremely simple operation
Direct digital readout of viscosity in SI units
Cost effective;
Supplied with rotors and other accessories ready for immediate use
VT-05 Measurement Range up to 300 mPas
VT-06 Measurement Range up to 4000 dPas
VT-05 Accuracy ± 5% of measurement range
VT-06 Accuracy ± 10% or reading - reproducibility ± 5%
Lightweight ( 260g without batteries)
Runs on 4 AA cells ( including nickel-hydride rechargeables)
.
.
..
.
==================================================
Type : N-8S
* Specification :
1. Range( mPa.s) : 1-2000k
2. Accuracy: 1.0% of range
3. Repeatability: 0.5%
4 .RPM: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
* Features:
- Stepping Motor means accurate, reliable operation
- Direct readout of all measurement parameters
- Auto range showing
- Time Function for measurement
- Sound alarm at under 20% Torque
- Linear calibration
- Wide range power supply: 100v-240v
..
.
.
....
========================================
2) Manual Visvo Meter
Type NJ-1
Specification :
* Measurement range: 1-100000mPa.s
* Rotor types: 0# , 1# , 2# , 3# and 4# rotors; ( You can determine
viscosity as low as 0.1mPa.s with 0# rotor.)
* Rotor velocity: 6 12 30 60rpm
* Measurement error: ± 5% ( Newton liquid)
* Power supply: 220V± 10% 50z± 10%
* Net weight: 5kg
* Gross weight: 7kg
* Size: 400* 370* 150
* Package size: 37* 32* 29cm
.
.
..
.
.
.
=====================
081362449440 JUAL Portable viscometer - VT-06 , PORTABLE VISCOMETER Rion VT-06: Viscotester for high viscosity fluids , Alat Ukur Kekentalan Cairan, Digital Viscometer type N-8S option : printer for type N-8S Viscometer manual NDJ-1.
